1500W Ultrasonic Welding Generator For Non-Woven Fabric Welding

  • 1
  • 2
  • 3

Brand Name : KnMTech

Model Number : KM-ME2015

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500sets per month

Delivery Time : 3-7 work days

Packaging Details : paper/wood carton

Product name : 20Khz Ultrasonic Welding Generator

Frequency : 20KHz

Output power : 1500W

Voltage : 220V/110V±10% 50/60Hz

Power fluctuation : ≤ 5%

Usage : Non-woven Fabric Welding,Ultrasonic Plasitc Welder for ABS PP PE PC Material,ultrasonic welding

After-sales service provided : Online support,Video technical support

Warranty : 1 Year

Contact Now

1500W Ultrasonic Welding Generator for Non-Woven Fabric Welding

Technical parameters:

Product Name 1500W Ultrasonic Welding Generator
Dimension Length 455mm×Width 460mm×Height 170mm
Net weight Of Main Body 14 Kg
Frequency Range 19.40-20.20kHz
Output Power 1000W-1500W
Voltage 220V+-10%
Welding Mode Continuous Welding
Protection Welding electrode impedance analysis +protection
Voltage protection
Transducer voltage protection
Welding Time 0.00s-9.99s
Working Frequency (options) 20KHz
Welding Amplitude adjustable 10%-100% (1% accuracy)
Air source purified air with a particle diameter of less than 5μm, 7kgf/cm2

Specifications:

Model Frequency Power Frequency Range Voltage Type of welding
KM-ME-1526 15kHz 2600w 14.40-15.20kHz 220V+-10% intermittent
KM-ME-1526 15kHz 2600w 14.40-15.20kHz 220V+-10% continuous
KM-ME-2015 20kHz 1500w 19.40-20.20kHz 220V+-10% continuous
KM-ME-2018 20khz 1800w 19.40-20.20kHz 220V+-10% intermittent

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of a high-power ultrasonic system.


The main function of the ultrasonic generator is to generate high power and high-frequency alternating current and drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit. The ultrasonic power supply can be divided into the self-excited and exciting type of power supply, its power called ultrasonic generator excitation type, autonomous power called an ultrasonic controller.

This is the analog type ultrasonic welding generator for non-woven fabric continuous welding, economical but powerful and very stable.

Features:

* High stability

* Good heat dissipation

* Large amplitude adjustable

* Economical but powerful

Application:

Application Industry Application Products
Toy: toys, children dolls, gifts, etc
Film & Fabric: Filters, Shower Curtains, Biodegradable Bag, Non-Woven Face Mark,..etc.
Medical: Surgical Instruments,Surgical Garments,Masks,Testing Equipment,filters,I-V units,insulated trays..etc.

For more details about our ultrasonic generators, welcome to click the catalog below:

Catalog of KnmTech Ultrasonic Generators.pdf

Detailed Photos:

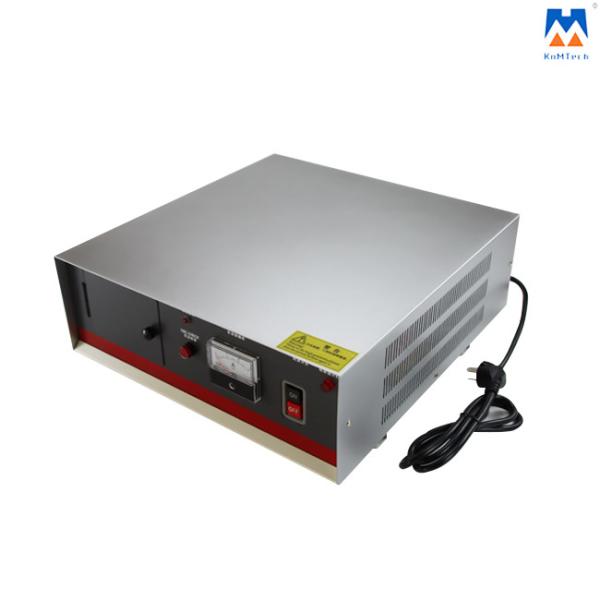

1500W Ultrasonic Welding Generator For Non-Woven Fabric Welding

1500W Ultrasonic Welding Generator For Non-Woven Fabric Welding
